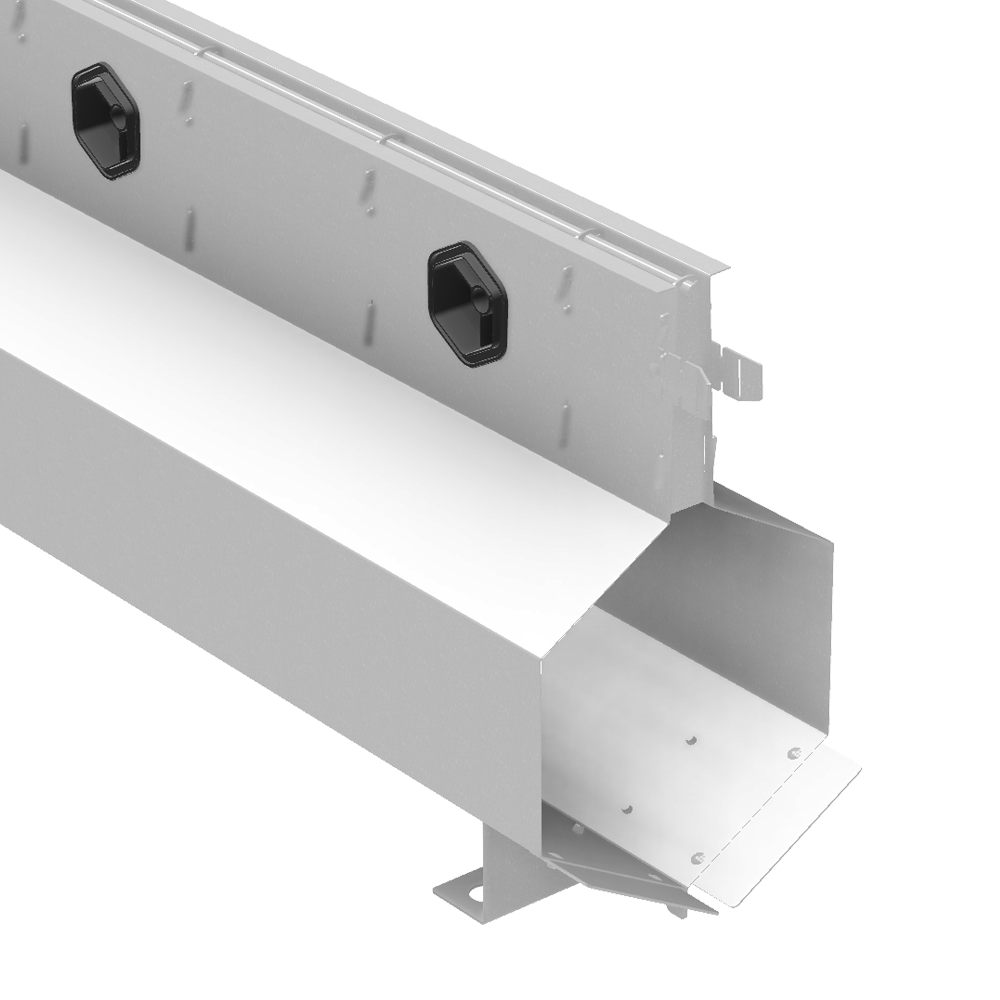

Gatic Slotdrain UltraSlot Treadsafe 225mm 3m Length
Gatic UltraSlot Treadsafe delivers the same heavy‑duty drainage performance as UltraSlot, with added safety features for pedestrian zones. The Treadsafe variant modifies the slot opening to 2 × 10mm wide slots, reducing foot entrapment risks while preserving high hydraulic intake capacity. Constructed from durable galvanized steel with a patented hexagonal profile, it withstands load classifications up to F900, making it ideal for mixed‑use spaces with both pedestrian traffic and heavy vehicles. The tapered throat minimizes blockage potential, while the V‑shaped channel base enhances self‑cleansing behavior. Its discreet appearance integrates seamlessly into concrete, asphalt, or block paving, and the through‑spacer option supports cable routing and structural reinforcement. UltraSlot Treadsafe provides long‑term reliability, safety, and efficient water management across demanding environments.
- Product Attributes
- Volumetric Data
- Key Features
- NBS Source
Brand: Gatic
Product Family: Slotdrain
Product Type: Length
Material: Galvanised Steel
Finish: Galvanised
Load Class: F900
Colour: Silver
Unit of Measure: Each
Direct to Site: Both
Intake Area/Metre: 18079mm2
British Standard: BS EN 1433
NBS Uniclass Reference: Pr_65_52_24_47 Linear slot drainage channels
NBS CAWS Reference: Q10/170 Linear slot drainage channel systems
Invert: 452mm
Throat Depth: 200mm
Throat Width: 70mm
Slot Orifice: 2 x 9mm
Capacity: 45 l/m
Commodity Code: 73269098
Weight: 50.8 kg
Width: 22.5 cm
Length: 300 cm
Height: 50.1 cm
Features and benefits:
- Strong and durable construction designed for constant heavy‑duty traffic such as airports, ports, and logistics areas.
- Engineered with sufficient concrete cover and structural integration (anchors, stabilising bars, channel feet) for ultra heavy‑duty load resistance up to F900.
- Outward‑folded top edge protects the concrete surround and prevents edge damage.
- Treadsafe option available, reducing slot width for safe pedestrian crossing without affecting intake capacity.
- High drainage capacity with stepped fall and self‑cleansing performance for efficient flow.
- Continuous interception reduces wash‑over, ensuring effective surface water capture.
- Fewer channel joints due to long channel lengths (up to 3m), improving hydraulic efficiency and installation speed.
- Quick, easy installation thanks to impact‑resistant galvanized steel and secure alignment/locking features.
- Low maintenance, tamper‑proof design with no movable parts, reducing long‑term costs.
- Design flexibility, including through‑spacer options for cable routing and availability in multiple lengths and configurations.
