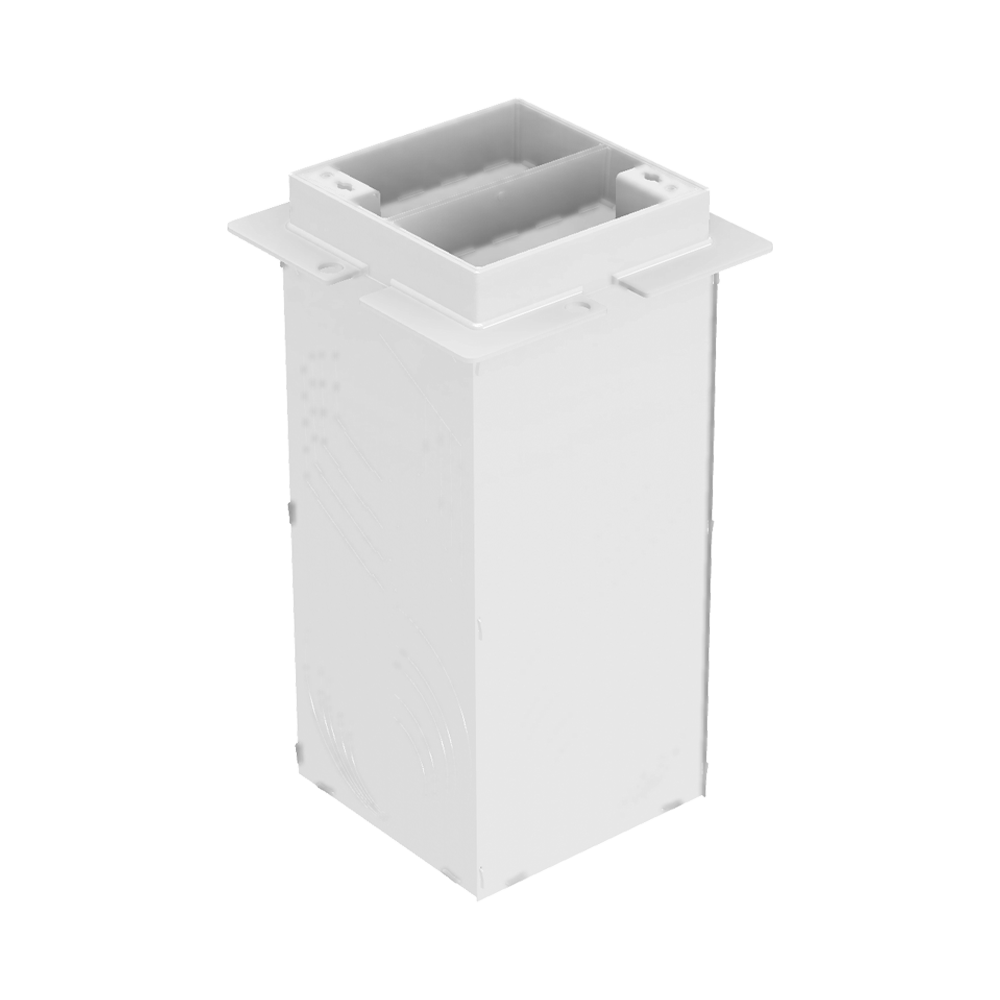

Gatic Slotdrain Boxes 485mm Outlet Box c/w Galvanized Recessed Cover
Gatic Outlet Boxes are heavy‑duty termination units designed to efficiently discharge water from Slotdrain systems into downstream pipework or drainage infrastructure. Engineered for compatibility with all major Gatic channel types—including CastSlot, UltraSlot, PaveSlot, and FacadeSlot—they are offered in configurations suitable for load classes up to F900, making them ideal for demanding environments such as airports, highways, industrial yards, ports, and commercial developments. Each outlet box is manufactured from robust galvanised steel and is available with either Treadsafe double triangular gratings or galvanised recessed covers, ensuring safe access and durability under high traffic loads. Multiple pipe outlet sizes (ranging from 115mm to 440mm depending on model) provide flexibility in connecting to broader drainage networks. Modular options, such as the Roto Modular Outlet Box, feature a pivoting lower section that rotates 45° in either direction, reducing the need for complex bends and improving hydraulic efficiency. By combining strength, versatility, and maintenance accessibility, Gatic Outlet Boxes play a vital role in ensuring reliable and high‑capacity surface water management across complex drainage systems.
- Product Attributes
- Volumetric Data
- Key Features
- NBS Source
Brand: Gatic
Product Family: Slotdrain
Product Type: Outlet Box
Material: Galvanised Steel
Finish: Galvanised
Load Class: C250
Colour: Silver
Unit of Measure: Each
Direct to Site: Both
Intake Area: 4460mm2
British Standard: BS EN 1433
NBS Uniclass Reference: Pr_65_52_24_47 Linear slot drainage channels
NBS CAWS Reference: Q10/170 Linear slot drainage channel systems
To Suit Channels: From 225 to 400mm
Surface Finish: Paving
Pipe Outlet Size: 205/255/320/360/440
Commodity Code: 73269098
Weight: 94.5 kg
Width: 48.5 cm
Length: 48.5 cm
Height: 112.5 cm
Features and benefits:
- Neat, unobtrusive and aesthetically discreet profile ideal for paved public and commercial areas.
- Designed specifically for use with paving units laid directly against the channel edge, ensuring a seamless surface finish.
- Throat‑spacer perforations allow subsurface water beneath paving to percolate into the channel body, enhancing drainage performance.
- Strong and durable construction with galvanized steel for longevity and reliability in paved environments.
- Watertight, rigid steel‑lined structure providing efficient and protected water conveyance.
- High drainage capacity with maximum intake and stepped fall for self‑cleansing flow.
- Continuous interception reduces surface wash‑over, improving performance in urban paved areas.
- Available load classification A15 to C250, suitable for pedestrian zones with occasional service vehicle traffic. [bg-graspointner.com], [alumascwms.co.uk]
- Fast, easy installation with lightweight, impact‑resistant galvanized steel channel units.
- Wide range of channel widths (100–600 mm) and accessories, offering strong design flexibility.
